Aloris® AT-20 Combo CNC Bar Puller Knurling Tool

Features: BAR PULLER plus KNURLING TOOL Dual Operations Capabilities.

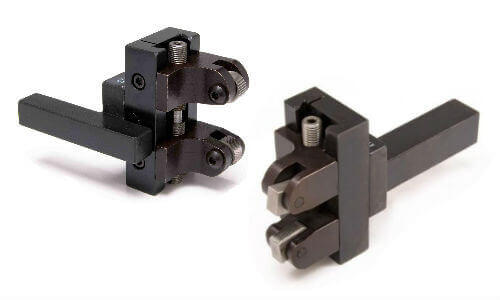

Aloris AT-20 Combo CNC Bar Puller Shown With Optional Knurls.

The Aloris AT-20 CNC Combo Bar Puller-Knurling Tool is Proudly Manufactured in the USA, with the Aloris Plant Still located in Clifton New Jersey. Over the years Aloris has significantly grown in Size, expanding their Original Factory operations several times over.

Most everyone in the metalworking /manufacturing community Knows and Recognizes that Aloris Invented and Patented the ALORIS QUICK CHANGE TOOL POST in the year 1958.

Sixty Nine years later and Still going, Aloris is the Worlds most respected manufacturer of Precision Quick Change Dove Tail System Lathe Tool Post Systems.

Over time, the Production Team developed the CNC Puller and Knurling Tool Combo for their internal manufacturing needs. The In-House productivity gains, ultimately resulted in the Introduction and Distribution of The Aloris CNC Bar Puller-Knurling Tool Line 20 plus years ago.

Our Bar Puller is Designed and Engineered to mount into the tool slot on most ANY CNC.

Lathe Turret. Bar Pulling Operations and Knurling applications Both be can be readily/simply performed on this Ergonomically Built Heavy Duty Combo Tool.

Knurling literally take seconds to install and perform on your CNC Lathe with the use of them.

Enjoy a Large Knurling range with a Minimum KNURL capacity of 1/8" to 2" being the Maximum Knurl Size. Specifically Engineered so that the Opposing forces on knurls create little or no force on the machine, enabling long term machine safe use.

Fast and Easy Bar Puller Lathe Operation by JUST removing the two knurl lock screws and then inserting-replacing the Aloris Factory created bar grippers. Your Aloris heavy duty bar puller has no gripper springs to remove or adjust when changing bar diameters, eliminating common spring Puller problems. Just loosen the locks crew, insert allen wrench and dial to the next size, preload approximately 1/8 rev., lock locking screw.

All Aloris Pullers are Furnished with 1" shank, there is a Minimum clearance required between turret and covers of 3-3/8".

COMBO CNC BAR PULLERS

Versatile combination that is easily used as a bar puller or knurling tool!

Benefits

Remove the two bar gripper screws, replace with optional knurls and use as a knurling tool.

Features

• -Easily mounts into tool slot on CNC turrets.
• -Adjustable with knurls installed.
• -Opposing forces on knurls create little or no force on the machine.
• -Minimum clearance required between turret and covers is 3-3/8"
• -Minimum capacity: 1/8"
• -Maximum capacity: 2"
• -Knurl size: 3/4" diameter x 3/8" wide x 1/4" hole
• -Shank size: 1"
• -Item Length: 7"

Includes

Complete with 1 set of grippers.

Notes

There are no gripper springs to remove when changing bar diameters. Just loosen the lockscrew, insert allen wrench and dial to the next size, pre-load approximately 1/8" revolution, lock locking screw.

-Shown With Optional Knurls.

-Spare Parts Available, Please Call

-ALORIS Combo CNC Bar Puller Knurling Tool and Spart Parts Available
