GRIPPAL CNC Bar Pullers ®

GRIPPAL CNC Bar Pullers ® are Self-Adjusting Coolant or Air actuated. It will enable the user to automate your CNC Turning Center in an inexpensive way to increase production.

Increase your Productivity, Start Saving Time and Money Today by Using the GRIPPALL™ CNC Bar Puller.

Quality Design: Made of Stainless Steel and Anodized Air Craft Aluminum.

• Mini Units Automatically grip from 1/8" to 1 1/8" in one setting.
• Automates your CNC Turning Center to increase production.
• Bar pullers don't use up valuable floor space.
• They are very easy to set up and use - no electrical interface required.
• Large Units Automatically grip from 1/8" to 3 1/8" with two settings.
• They can be easily moved from one machine to another.
• A wide griping range is obtained from a very compact design.
• Can be used on a variety of material shapes. Flat, Square, Round & Hex.
• Use GRIPPALL CNC Bar Puller as a parts picker so finished work piece doesn't get damaged.

GRIPPALL™ Large and Mini CNC Bar Pullers

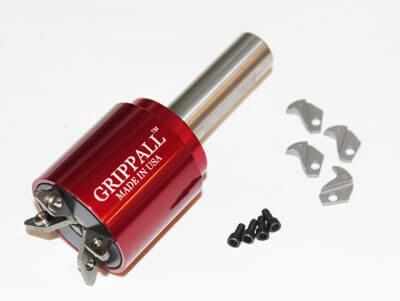

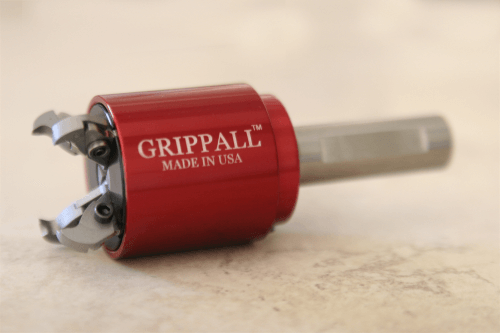

Mini Grippall™

Product no.: MGA0106254F FOUR FINGER CNC Bar Puller 5/8" Round Mounting Shank. INCLUDED ARE A SET OF 4 HARD STEEL FINGERS AND MOUNTING SCREWS. Gripping Capacity: 1/8" to 1 1/8" Made in U.S.A.

Product no.: MGA01016M4F FOUR FINGER CNC Bar Puller 16 MM Round Millimeter Mounting Shank. INCLUDED ARE A SET OF 4 HARD STEEL FINGERS & MOUNTING SCREWS. Gripping Capacity: 1/8" to 1 1/8" Made in U.S.A

Product no.: MGA0106253F THREE FINGER CNC Bar Puller 5/8" Round Mounting Shank. INCLUDED ARE A SET OF 3 HARD STEEL FINGERS & MOUNTING SCREWS. Gripping Capacity: 1/8" to 1 1/8" Made in U.S.A.

Product no.: MGA01016M3F THREE FINGER CNC Bar Puller 16 MM Round Millimeter Mounting Shank. INCLUDED ARE A SET OF 3 HARD STEEL FINGERS & MOUNTING SCREWS. Gripping Capacity: 1/8" to 1 1/8" Made in U.S.A.

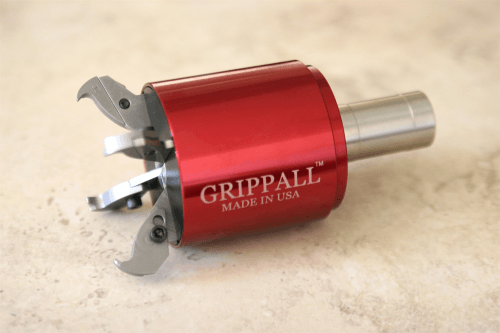

Large Grippall™

Product no.: GA1000-1-4F Large Grippall™ FOUR FINGER CNC Bar Puller 1" Round Mounting Shank. INCLUDED ARE A SET OF 4 HARD STEEL FINGERS & MOUNTING SCREWS. Gripping Capacity: 1/8" - 3 1/8" (2) settings. Made in U.S.A. First Setting: 1/8" to 2 1/2" / Second Setting: 3/4" to 3 1/8"

Product no.: GA-M-32MR4F Large Grippall™ FOUR FINGER CNC Bar Puller 32 MM Millimeter Round Mounting Shank. INCLUDED ARE A SET OF 4 HARD STEEL FINGERS & MOUNTING SCREWS. Gripping Capacity: 1/8" - 3 1/8" (2) settings. Made in U.S.A. First Setting: 1/8" to 2 1/2" / Second Setting: 3/4" to 3 1/8"

Product no.: GA-M-40MR4F Large Grippall™ FOUR FINGER CNC Bar Puller 40 MM Millimeter Round Mounting Shank. INCLUDED ARE A SET OF 4 HARD STEEL FINGERS & MOUNTING SCREWS. Gripping Capacity: 1/8" - 3 1/8" (2) settings. Made in U.S.A. First Setting: 1/8" to 2 1/2" / Second Setting: 3/4" to 3 1/8"

Product no.: GA-MVDI304F Large Grippall™ FOUR FINGER CNC Bar Puller VDI 30. INCLUDED ARE A SET OF 4 HARD STEEL FINGERS & MOUNTING SCREWS. ALL VDI UNITS ARE INTERNALLY PLUMBED AND READY TO USE WITH CNC LATHES'S COOLANT SYSTEM. Gripping Capacity: 1/8" - 3 1/8" (2) settings. Made in U.S.A. First Setting: 1/8" -2 1/2" Second Setting: 3/4" to 3 1/8"

Product no.: GA-MVDI404F Large Grippall™ FOUR FINGER CNC Bar Puller VDI 40. INCLUDED ARE A SET OF 4 HARD STEEL FINGERS & MOUNTING SCREWS. ALL VDI UNITS ARE INTERNALLY PLUMBED AND READY TO USE WITH CNC LATHES'S COOLANT SYSTEM. Gripping Capacity: 1/8" - 3 1/8" (2) settings. Made in U.S.A. First Setting: 1/8" to 2 1/2" / Second Setting: 3/4" to 3 1/8"

Product no.: GA-MVDI504F Large Grippall™ FOUR FINGER CNC Bar Puller VDI 50. INCLUDED ARE A SET OF 4 HARD STEEL FINGERS & MOUNTING SCREWS. ALL VDI UNITS ARE INTERNALLY PLUMBED AND READY TO USE WITH CNC LATHES'S COOLANT SYSTEM. Gripping Capacity: 1/8" - 3 1/8" (2) settings. Made in U.S.A. First Setting: 1/8" to 2 1/2" / Second Setting: 3/4" to 3 1/8"

Product no.: GA1000-1-3F Large Grippall™ THREE FINGER CNC Bar Puller 1" Round Mounting Shank. INCLUDED ARE A SET OF 3 HARD STEEL FINGERS & MOUNTING SCREWS. Gripping Capacity: 1/8" - 3 1/8" (2) settings. Made in U.S.A. First Setting: 1/8" to 2 1/2" / Second Setting: 3/4" to 3 1/8"

Product no.: GA-M-32MR3F Large Grippall™ THREE FINGER CNC Bar Puller 32 MM Millimeter Round Mounting Shank. INCLUDED ARE A SET OF 3 HARD STEEL FINGERS & MOUNTING SCREWS. Gripping Capacity: 1/8" - 3 1/8" (2) settings. Made in U.S.A. First Setting: 1/8" to 2 1/2" / Second Setting: 3/4" to 3 1/8"

Product no.: GA-M-40MR3F Large Grippall™ THREE FINGER CNC Bar Puller 40 MM Millimeter Round Mounting Shank. INCLUDED ARE A SET OF 3 HARD STEEL FINGERS & MOUNTING SCREWS. Gripping Capacity: 1/8" - 3 1/8" (2) settings. Made in U.S.A. First Setting: 1/8" to 2 1/2" / Second Setting: 3/4" to 3 1/8"

Product no.: GA-MVDI303F Large Grippall™ THREE FINGER CNC Bar Puller VDI 30. INCLUDED ARE A SET OF 3 HARD STEEL FINGERS & MOUNTING SCREWS. ALL VDI UNITS ARE INTERNALLY PLUMBED AND READY TO USE WITH CNC LATHES'S COOLANT SYSTEM. Gripping Capacity: 1/8" - 3 1/8" (2) settings. Made in U.S.A. First Setting: 1/8" to 2 1/2" / Second Setting: 3/4" to 3 1/8"

Product no.: GA-MVDI403F Large Grippall™ THREE FINGER CNC Bar Puller VDI 40. INCLUDED ARE A SET OF 3 HARD STEEL FINGERS & MOUNTING SCREWS. ALL VDI UNITS ARE INTERNALLY PLUMBED AND READY TO USE WITH CNC LATHES'S COOLANT SYSTEM. Gripping Capacity: 1/8" - 3 1/8" (2) settings. Made in U.S.A. First Setting: 1/8" to 2 1/2" / Second Setting: 3/4" to 3 1/8"

Product no.: GA-MVDI503F Large Grippall™ THREE FINGER CNC Bar Puller VDI 50. INCLUDED ARE A SET OF 3 HARD STEEL FINGERS & MOUNTING SCREWS. ALL VDI UNITS ARE INTERNALLY PLUMBED AND READY TO USE WITH CNC LATHES'S COOLANT SYSTEM. Gripping Capacity: 1/8" - 3 1/8" (2) settings. Made in U.S.A. First Setting: 1/8" to 2 1/2" / Second Setting: 3/4" to 3 1/8"

Product no.: GA1000-1-2F Large Grippall™ TWO FINGER CNC Bar Puller 1" Round Mounting Shank. INCLUDED ARE A SET OF 2 HARD STEEL FINGERS & MOUNTING SCREWS. Gripping Capacity: 1/8" - 3 1/8" (2) settings. Made in U.S.A. First Setting: 1/8" to 2 1/2" Second Setting: 3/4"to 3 1/8"

Product no.: GA-M-32MR2F Large Grippall™ TWO FINGER CNC Bar Puller 32 MM Millimeter Round Mounting Shank. INCLUDED ARE A SET OF 2 HARD STEEL FINGERS & MOUNTING SCREWS. Gripping Capacity: 1/8" - 3 1/8" (2) settings. Made in U.S.A. First Setting: 1/8" to 2 1/2" / Second Setting: 3/4" to 3 1/8"

Product no.: GA-M-40MR2F Large Grippall™ TWO FINGER CNC Bar Puller 40 MM Millimeter Round Mounting Shank. INCLUDED ARE A SET OF 2 HARD STEEL FINGERS & MOUNTING SCREWS. Gripping Capacity: 1/8" - 3 1/8" (2) settings. Made in U.S.A. First Setting: 1/8" to 2 1/2" / Second Setting: 3/4" to 3 1/8"

Product no.: GA-MVDI302F Large Grippall™ TWO FINGER CNC Bar Puller VDI 30. INCLUDED ARE A SET OF 2 HARD STEEL FINGERS & MOUNTING SCREWS. ALL VDI UNITS ARE INTERNALLY PLUMBED AND READY TO USE WITH CNC LATHES'S COOLANT SYSTEM. Gripping Capacity: 1/8" - 3 1/8" (2) settings. Made in U.S.A. First Setting: 1/8" to 2 1/2" / Second Setting: 3/4" to 3 1/8"

Product no.: GA-MVDI402F Large Grippall™ TWO FINGER CNC Bar Puller VDI 40. INCLUDED ARE A SET OF 2 HARD STEEL FINGERS & MOUNTING SCREWS. ALL VDI UNITS ARE INTERNALLY PLUMBED AND READY TO USE WITH CNC LATHES'S COOLANT SYSTEM. Gripping Capacity: 1/8" - 3 1/8" (2) settings. Made in U.S.A. First Setting: 1/8" to 2 1/2" / Second Setting: 3/4" to 3 1/8"

Product no.: GA-MVDI502F Large Grippall™ TWO FINGER CNC Bar Puller VDI 50. INCLUDED ARE A SET OF 2 HARD STEEL FINGERS & MOUNTING SCREWS. ALL VDI UNITS ARE INTERNALLY PLUMBED AND READY TO USE WITH CNC LATHES'S COOLANT SYSTEM. Gripping Capacity: 1/8" - 3 1/8" (2) settings. Made in U.S.A. First Setting: 1/8" to 2 1/2" / Second Setting: 3/4" to 3 1/8"

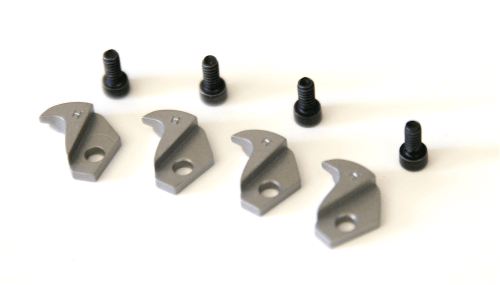

GRIPPALL™ FINGERS

- REPLACEMENT FINGERS

FOR LARGE AND MINI Grippall™ 3 & 4

Mini HARD STEEL FINGERS

Product no.: MGA-FHS4 HARD STEEL FINGERS FOR MINI Grippall™ CNC BAR PULLER. SET OF 4 WITH 4 - 40 MOUNTING SCREWS. MADE IN U.S.A.

Mini SOFT STEEL FINGERS

Product no.: MGA-FSS4 SOFT STEEL FINGERS FOR MINI Grippall™ CNC BAR PULLER. SET OF 4 WITH 4 - 40 MOUNTING SCREWS. MADE IN U.S.A.

Mini ALUMINIM FINGERS

Product no.: MGA-FAL4 ALUMINIM FINGERS FOR MINI Grippall™ CNC BAR PULLER. SET OF 4 WITH 4 - 40 MOUNTING SCREWS. MADE IN U.S.A.

Mini BRASS FINGERS

Product no.: MGA-FBR4 BRASS FINGERS FOR MINI Grippall™ CNC BAR PULLER. SET OF 4 WITH 4 - 40 MOUNTING SCREWS. MADE IN U.S.A.

Mini HARD STEEL FINGERS

Product no.: MGA-FHS3 HARD STEEL FINGERS FOR MINI Grippall™ CNC BAR PULLER. SET OF 3 WITH 4 - 40 MOUNTING SCREWS. MADE IN U.S.A.

Mini SOFT STEEL FINGERS

Product no.: PART NO: MGA-FSS3 SOFT STEEL FINGERS FOR MINI Grippall™ CNC BAR PULLER. SET OF 3 WITH 4 - 40 MOUNTING SCREWS. MADE IN U.S.A.

Mini ALUMINIM FINGERS

Product no.: MGA-FAL3 ALUMINIM FINGERS FOR MINI Grippall™ CNC BAR PULLER. SET OF 3 WITH 4 - 40 MOUNTING SCREWS. MADE IN U.S.A

Mini BRASS FINGERS

Product no.: MGA-FBR3 BRASS FINGERS FOR MINI Grippall™ CNC BAR PULLER. SET OF 3 WITH 4 - 40 MOUNTING SCREWS. MADE IN U.S.A.

Mini DELRIN FINGERS

Product no.: MGA-FDL3 DELRIN (POLYMER) FINGERS FOR MINI Grippall™ CNC BAR PULLER. SET OF 3 WITH 4 - 40 MOUNTING SCREWS. MADE IN U.S.A.

LARGE HARD STEEL FINGERS

Product no.: GA-FHS4 HARD STEEL FINGERS FOR LARGE Grippall™ CNC BAR PULLER. SET OF 4 WITH 8 - 32 MOUNTING SCREWS. MADE IN U.S.A.

LARGE SOFT STEEL FINGERS

Product no.: GA-FSS4 SOFT STEEL FINGERS FOR LARGE Grippall™ CNC BAR PULLER. SET OF 4 WITH 8 - 32 MOUNTING SCREWS. MADE IN U.S.A.

LARGE ALUMINIM FINGERS

Product no.: GA-FAL4 ALUMINIM FINGERS FOR LARGE Grippall™ CNC BAR PULLER. SET OF 4 WITH 8 - 32 MOUNTING SCREWS. MADE IN U.S.A

LARGE BRASS FINGERS

Product no.: GA-FBR4 ALUMINIM FINGERS FOR LARGE Grippall™ CNC BAR PULLER. SET OF 3 WITH 8 - 32 MOUNTING SCREWS. MADE IN U.S.A.

LARGE DELRIN FINGERS

Product no.: GA-FDL4 BRASS FINGERS FOR LARGE Grippall™ CNC BAR PULLER. SET OF 3 WITH 8 - 32 MOUNTING SCREWS. MADE IN U.S.A.

LARGE HARD STEEL FINGERS

Product no.: GA-FHS3 HARD STEEL FINGERS FOR LARGE Grippall™ CNC BAR PULLER. SET OF 2 WITH 8 - 32 MOUNTING SCREWS. MADE IN U.S.A.

LARGE SOFT STEEL FINGERS

Product no.: GA-FSS3 SOFT STEEL FINGERS FOR LARGE Grippall™ CNC BAR PULLER SET OF 2 WITH 8 - 32 MOUNTING SCREWS. MADE IN U.S.A.

LARGE ALUMINIM FINGERS

Product no.: GA-FAL3 ALUMINIM FINGERS FOR LARGE Grippall™ CNC BAR PULLER. SET OF 3 WITH 8 - 32 MOUNTING SCREWS. MADE IN U.S.A.

LARGE BRASS FINGERS

Product no.: GA-FBR3 BRASS FINGERS FOR LARGE Grippall™ CNC BAR PULLER. SET OF 3 WITH 8 - 32 MOUNTING SCREWS. MADE IN U.S.A.

LARGE HARD STEEL FINGERS

Product no.: GA-FHS2 HARD STEEL FINGERS FOR LARGE Grippall™ CNC BAR PULLER. SET OF 2 WITH 8 - 32 MOUNTING SCREWS. MADE IN U.S.A.

LARGE SOFT STEEL FINGERS

Product no.: GA-FSS2 SOFT STEEL FINGERS FOR LARGE Grippall™ CNC BAR PULLER SET OF 2 WITH 8 - 32 MOUNTING SCREWS. MADE IN U.S.A.

LARGE ALUMINIM FINGERS

Product no.: GA-FAL2 ALUMINIM FINGERS FOR LARGE Grippall™ CNC BAR PULLER. SET OF 2 WITH 8 - 32 MOUNTING SCREWS. MADE IN U.S.A.

LARGE BRASS FINGERS

Product no.: GA-FBR2 BRASS FINGERS FOR LARGE Grippall™ CNC BAR PULLER. SET OF 2 WITH 8 - 32 MOUNTING SCREWS. MADE IN U.S.A.

LARGE DELRIN FINGERS

Product no.: GA-FDL2 DELRIN (POLYMER) FINGERS FOR LARGE Grippall™ CNC BAR PULLER. SET OF 2 WITH 8 - 32 MOUNTING SCREWS. MADE IN U.S.A.

Mini DELRIN FIGERS

Product no.: MGA-FDL4 DELRIN (POLYMER) FINGERS FOR MINI Grippall™ CNC BAR PULLER.SET OF 4 WITH 4 - 40 MOUNTING SCREWS. MADE IN U.S.A.

LARGE DELRIN FINGERS

Product no.: GA-FDL3 DELRIN (POLYMER) FINGERS FOR LARGE Grippall™ CNC BAR PULLER. SET OF 2 WITH 8 - 32 MOUNTING SCREWS. MADE IN U.S.A.

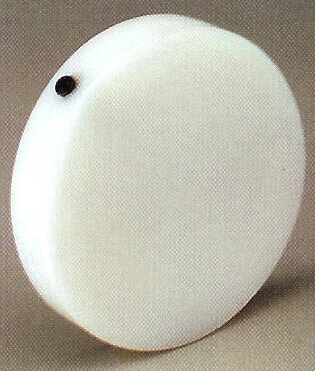

GRIPPALL™ Bar Support Collars

Bar Support Collars

Made of self-lubricating polyethylene! Spindle collars are used to centralize the bar stock in the CNC's spindle. Reduce vibration and bar whip. Machineable polyethylene for different bar stock diameters and spindle bores. When end of bar is reached, spindle collars slide off for re-use.

Recommended for use in conjunction with all Grippall™ CNC Bar Pullers. Made in the U.S.A. Collars are drilled and taped to center with a 10-24 set screw included.

Product no.: GA-COL-1.25

Product no.: GA-COL-2.50

Product no.: GA-COL-3.00
